2.7T Hydraulic Machinery Equipment Mover Heavy Duty Furniture Transport Mover

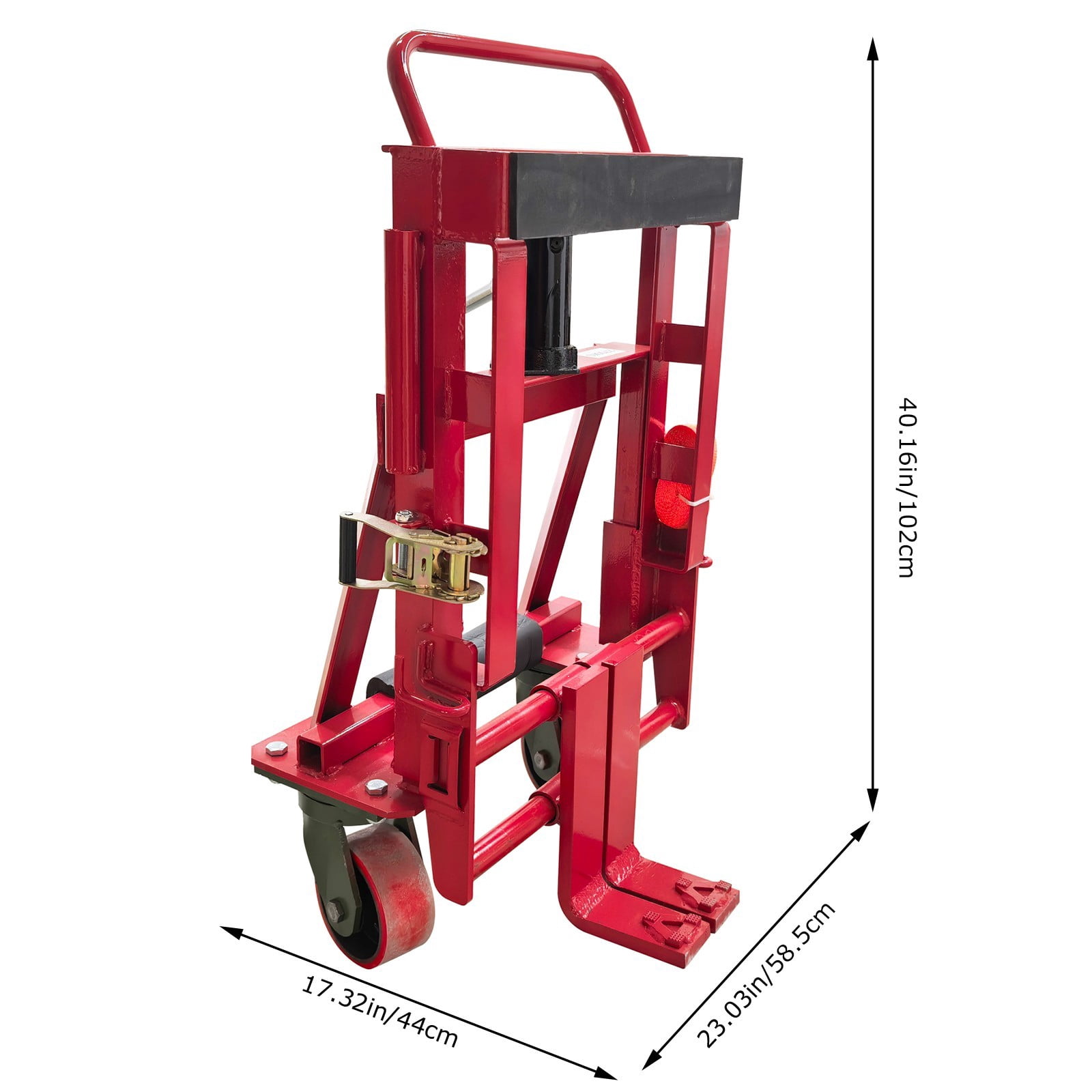

<p>Introduction:<br>The manual furniture mover has been developed for lifting and transporting cabinets and other large regular objects. For this reason, its supports are covered with rubber pads to prevent the goods being transported from damage. Since the hydraulic furniture mover consists of two units, rectangular objects of different lengths can be moved by using a minimum of space. Two adjustable bottom supporting plates are adopted in each transporting unit to adapt to different objects to be transported. Due to the weight of the cabinet on the platform, it will hold itself in position when the units are standing vertically and the frame of the platform is in contact with its sides. If you operate it properly, our hydraulic furniture mover will help you to move cabinets, furniture and other things quickly and safely.</p> <p><b>Note: There are two transporting units in one set.</b></p> <p>Product Parameters<br>Model: FM270-2<br>Maximum Capacity: 2700kg (5952LBs)<br>Lifting Height of Lifting Plate: 150mm (5.91in)<br>Size of Lifting Plate: 50*70mm (1.97*2.76 inches)<br>Diameter of Wheel: Φ150mm (5.91in)<br>Size of Each Unit: 58.5*44*102cm (23.03*17.32*40.16 inches)<br>Total Net Weight: 154.5kg (340.61LBs)</p> <p>Precaution<br>1. The floor must be absolutely level, smooth and clean. There must be no inclines or slopes. Make sure that the floor and the floor covering are to stand up to the load formed by the weight of the furniture being transported.<br>2. Check whether the cabinet or furniture to be transported contains any loose objects. These will have to be removed, or secured to avoid accidents.<br>3. Check whether the furniture is strong enough for the two opposite sides to take the weight of the piece via the transport units' platforms, and whether the upper supports of the transport units can hold the furniture to be transport without damaging it.<br>4. Find the weight of the furniture to be transported. The maximum load of 2700 kg/pair, that is, 1350 kg for each unit must not be exceeded.<br>5. Find the center of gravity of the furniture to be transported. Along the furniture base, it is the decisive for the load that a single transport unit can bear, across the base, for the center of the transport unit, and, in connection with the height, for the moment of tilting that occurs when moving the furniture. When in use, the height of the center of gravity must not exceed 0.8m. The distance of the transport units to one another must not be less than 0.5m and no more than 4.0m (furniture of the securing straps).<br>6. Never use this equipment for towing by a vehicle. </p> <p>Item Included (170245): 1 x Hydraulic Machinery &amp; Equipment Mover</p>

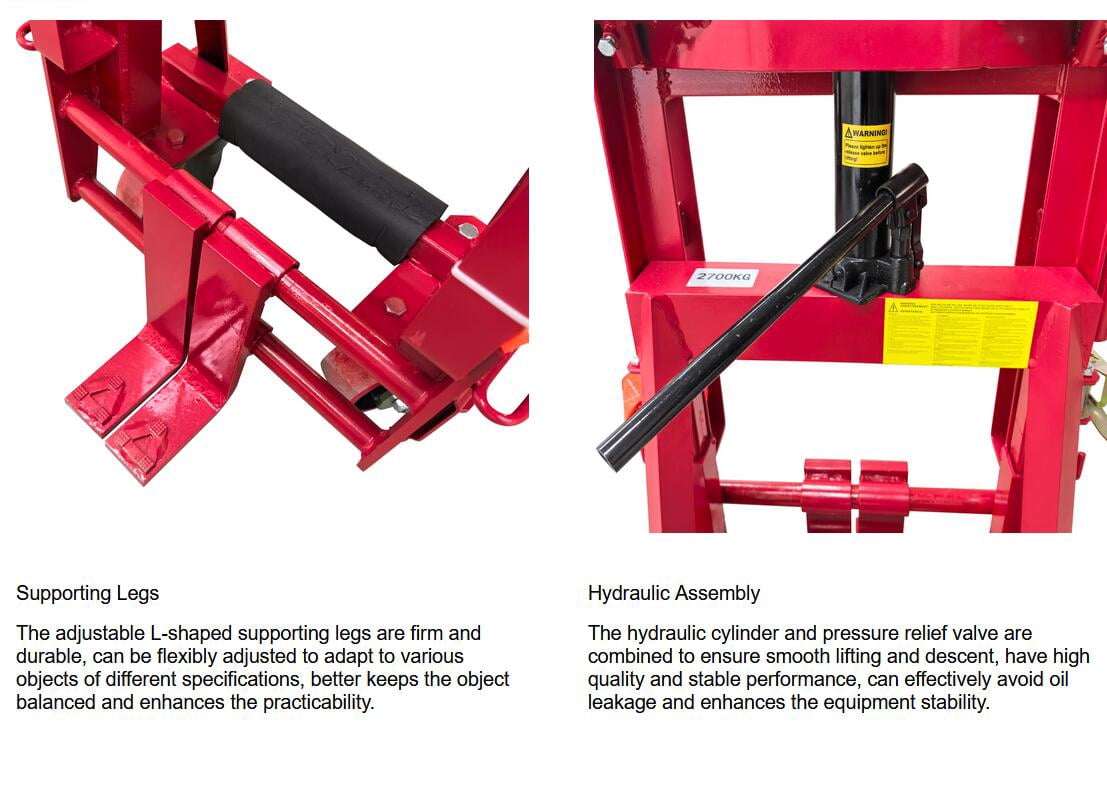

• 【Robust Hydraulic Lifting System】Equipped with a high-quality hydraulic cylinder and pressure relief valve, this dolly ensures smooth and stable lifting and descent. The reliable hydraulic assembly is designed to prevent oil leakage, providing the power and stability needed to handle heavyweight items with ease.
• 【Adjustable & Versatile Support】Featuring durable, adjustable L-shaped supporting legs, this unit can be flexibly adapted to transport objects of various specifications. This design ensures optimal balance and makes it ideal for moving cupboards, safes, containers, and heavy machinery.

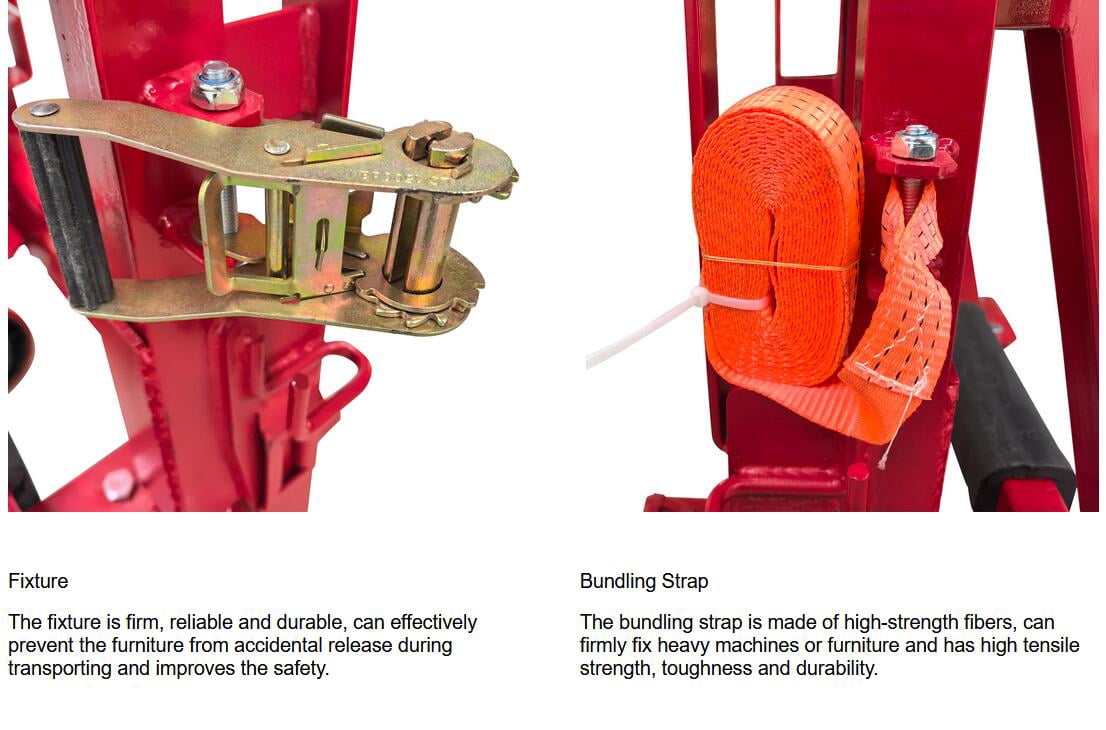

• 【Superior Safety & Protection】Safety is paramount with a firm fixture and high-strength fiber bundling straps that prevent accidental release during transit. Additionally, protective rubber pads are included to shield furniture and machines from damage and collisions, ensuring both the load and the equipment remain in perfect condition.

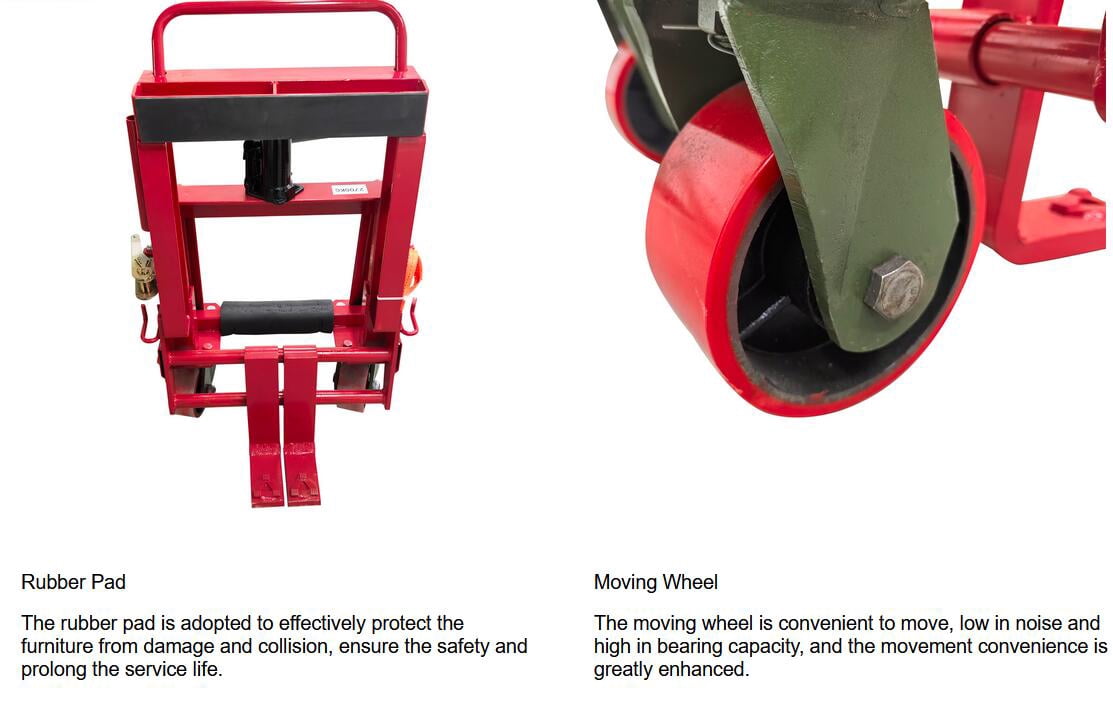

• 【Effortless Mobility】Designed for convenience, the heavy-duty moving wheels offer high bearing capacity and low-noise operation. This feature significantly enhances maneuverability, making it the perfect tool for delivery, removal, maintenance, and assembly applications in tight spaces.
• 【Professional Heavy-Duty Design】Built specifically for the professional transport of heavyweight items, this dolly combines firm construction with reliable performance. It serves as an essential tool for movers and technicians, streamlining the transport of bulky and heavy objects efficiently.
